USB Camera Parameter | ||||
Sensor CHIP | RGB CAMERA WDR | IR CAMERA B/W | REMARKS | |
Image Sensor Image sensor | HDR CMOS | HD CMOS | ||
Effective Pixels | 1920*1080 | 1280*960 | ||
Pixel size | 3.0umX3.0um | 3.0umX3.0um | ||
Image sensor Data output | Parallel 12bits Raw data | Parallel 12bits Raw data | ||
Maximum Frame Rates | 1280x960 at 30fps /1280x720 at 30fps/960x540 at 30fps/1024x768 at 30fps/1800x600 at 30fps /640x480 at 30fps | |||
SNR max | >45Db | >44Db | ||
Dynamic range | >110Db | >82Db | ||
Video output | MJPG/YUV2 | MJPG/YUV2 | ||
Digital interface | 5-pin 1.25mm USB2.0 | 5-pin 1.25mm USB2.0 | ||
Lens filter wavelength | 650nm （default） | 940nm (default) | Default infrared optional 850nm | |
Power requirements | 5V±5% | 5V±5% | ||
Power Consumption | Max 1.25 0.6w | Max 1.25 0.6w | Without infrared light | |
Operating temperature (°C) ZE | -10-70°C | -10-70°C | Wide temperature range | |
Storage temperature(°C) | -40℃ | -80°C | ||
Lens Mount | M12X0.5MM / No distortion 91. | Optional | ||
Warranty | 1.5 years | |||
OS support system | Windows Xp / Vista / Windows 7,8.1/ Mac / Windows 10 / Android /Mac / Linux 2.6.2 | Multi-system compatible | ||

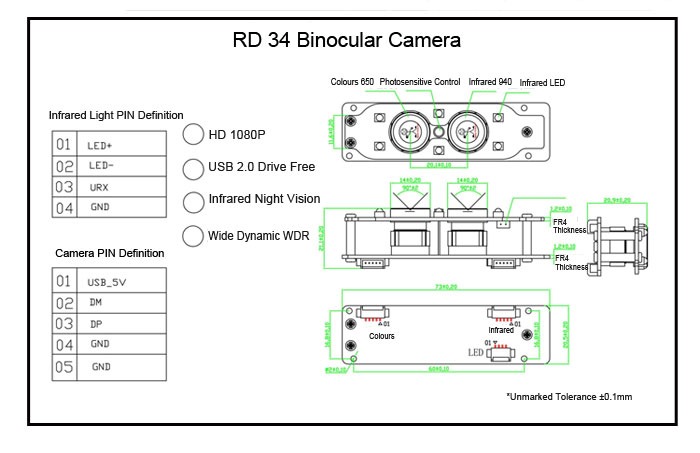

General Purpose Auxiliary interface definition | 1 | 3.3V | output(200mA max) | |
2 | GND | DGND | ||
3 | GPIO 0 | INPUT | ||
USB CONN Interface definition | 1 | 5V | USB POWER | 500mA max |
2 | DM | - | D- | |
3 | DP | - | D+ | |
4 | GND | - | DGND | |
5 | COVER | - | shield | |
